A technology start-up run by two Cambridge physics graduates is working with a major UK-based international contractor to develop a method of testing concrete strength using “Internet of Things” sensors and processing.
This is not a paywall. Registration allows us to enhance your experience across Construction Management and ensure we deliver you quality editorial content.
Registering also means you can manage your own CPDs, comments, newsletter sign-ups and privacy settings.
Trials are underway with the leading contractor to test the node’s ability to transmit data from temperature sensors embedded in concrete when it is curing to gain a more accurate real-time picture of when formwork is ready to be struck.
If successful, Converge claims the technique could radically speed up the construction process as well as free up engineers to focus on more important tasks.
Raphael Scheps, co-founder and chief executive of Converge, told BIM+ how it works: “Concrete maturity (ie strength) is gauged by measuring its temperature over time, which was previously done either by crush testing samples in the lab, or by using embedded sacrificial temperature sensors in concrete.
“These processes are manual and time consuming, the latter still requires section engineers to walk around sites plugging handheld monitors into the embedded sensors then taking them back to the site office to analyse the data. Our method involves connecting sensors to a small node running a wireless network that sends the data direct to our servers so we can analyse it in real time.”
The trials will involve stress testing the nodes as well as parallel testing, comparing results gathered wirelessly with those recorded manually using existing techniques.

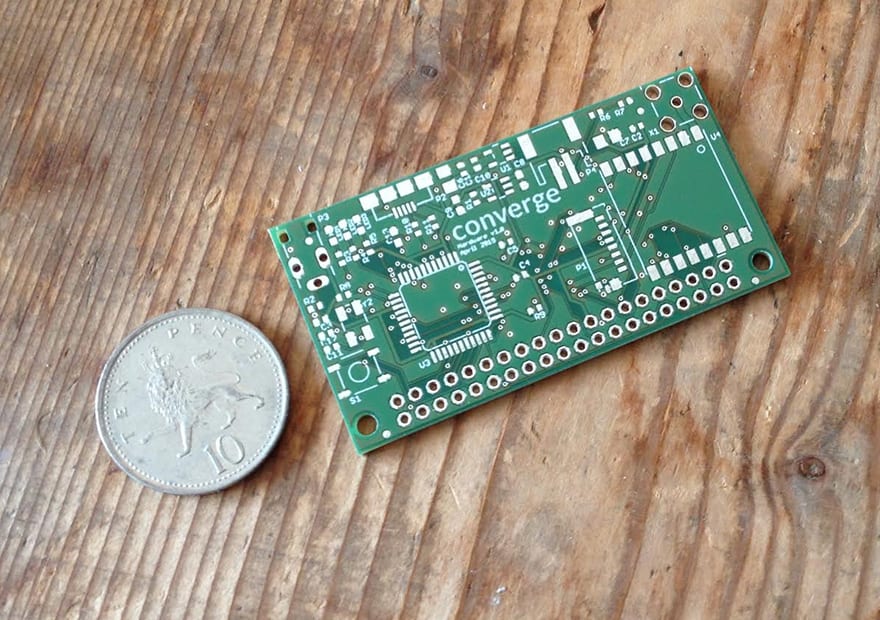

Trials are underway with a leading contractor to test the node’s ability to transmit data from temperature sensors embedded in concrete
Converge says its node is very power efficient, able to run several years on a single battery and transmit even in the harsh conditions seen on many construction sites.
It also runs on a low radio frequency, of 868MHz, which unlike wifi or Bluetooth networks, should enable uninterrupted transmission through concrete and steel.
Scheps says the concrete testing technique could be enhanced in future by using predictive analytics. For example, data from the sensors could be combined with the weather forecast to predict how many operatives will be required at a certain time to strike a slab.
Converge is also exploring the potential benefits of web-enabling other sensors used on construction sites, such as those used to measure pressure on retaining walls, noise and vibration levels, or dust created by construction machinery.
“It’s all about bringing more data-driven decision making onto construction sites and making sites smarter and able to predict things,” he says.
This construction vision of the Internet of Things could also radically extend the capabilities of BIM, he says, by adding data feeds from almost any sensor into BIM models to provide a real-time visualisation of a construction site as work progresses.
Sheps met Converge’s co-founder Gideon Farrell four years ago while both were studying physics at Cambridge. Although the pair have no background in construction, they “stumbled upon” a number of sensing problems in the industry and subsequently launched Converge, supported by a £10,000 grant from a London-based incubator for technology entrepreneurs.
The firm has now expanded its team, hiring a software engineer and a mechanical engineer, and is currently going through a second round of investment.
It’s all about bringing more data-driven decision making onto construction sites and making sites smarter and able to predict things.
– Raphael Scheps, Converge
